Why Are Valves Particularly Important?
On a pipeline, straight runs are relatively easy to insulate with sheet-metal cladding. However, valves, flanges and elbows are most often left "open for maintenance." Research shows that uninsulated valves and flanges in a typical industrial plant account for 30-50% of total line heat loss.
According to ISO 12241 calculations, an uninsulated DN100 Globe valve carrying 180°C steam loses approximately 600-800 W continuously to ambient air. Over a year, this figure corresponds to a significant energy cost.
Step-by-Step Payback Calculation
The calculation below is based on realistic field parameters; however, the energy cost and operating conditions of every plant differ. It is therefore recommended that you redo this calculation with your own plant's current parameters.
Scenario: DN100 Globe Valve, Steam Line
| Parameter | Value |
|---|---|
| Valve type | DN100 Globe, 180°C steam line |
| Operating hours | 8,000 h/year (91% utilisation) |
| Uninsulated heat loss | ~700 W (ISO 12241 calculation) |
| Jacketed heat loss (80 mm stone wool) | ~90 W |
| Net energy saving | 610 W = 0.61 kW |
| Annual energy saving | 0.61 kW × 8,000 h = 4,880 kWh/year |
| Steam energy unit cost | ~USD 0.08/kWh (gas equivalent, 2025) |
| Annual monetary saving | ~USD 390/year |
| Valve jacket cost (single unit) | ~USD 200-280 |
| Simple payback period | 7-9 months |
Note: The energy cost above is based on 2025 natural gas prices. As energy costs change, the payback period may shorten or lengthen. Contact us to update this calculation with your plant's current kWh cost.
Multi-Valve Scenario

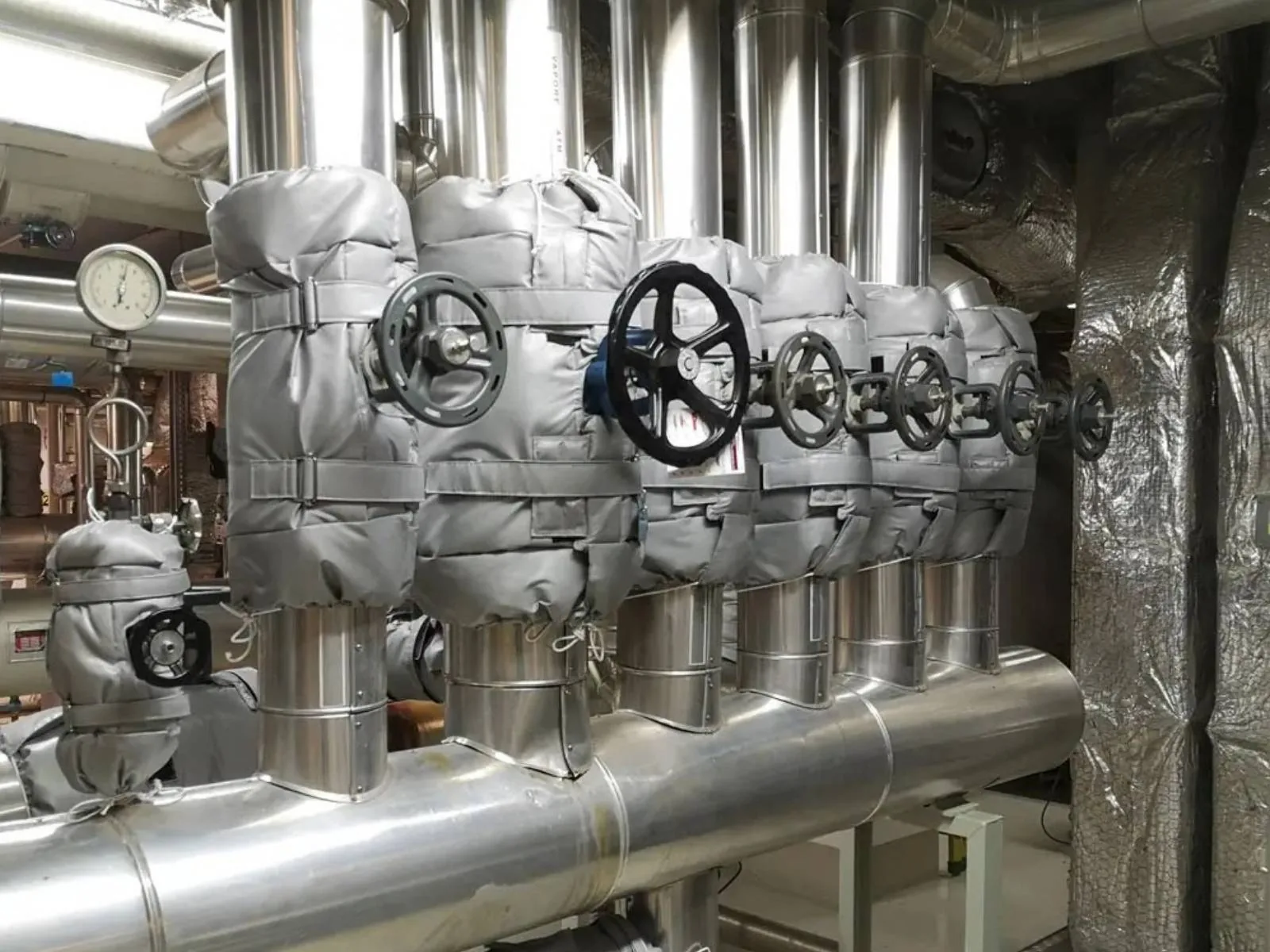

Real plants have dozens, sometimes hundreds, of uninsulated valves. In bulk calculations, economies of scale also come into play: bulk ordering reduces unit cost while the average payback period across the whole line stays the same or shortens.
Maintenance Cost Savings: The Overlooked Line Item
The calculation above covers only energy savings. The second significant benefit of removable valve jackets is reduced maintenance cost: with fixed metal jacket insulation, insulation is stripped before every maintenance session and reapplied afterwards. Adding this material and labour cost further shortens the real payback period.
On lines with high maintenance frequency (periodic leak checks at flanges, annual valve inspection), the total life-cycle cost of removable jackets is markedly advantageous compared with fixed insulation.
Get a Calculation Done for Your Plant
Every plant's valve inventory, operating temperatures and energy costs differ. As OPTERM, within the scope of a thermal insulation audit we inventory your plant's valves, determine the annual energy saving potential with ISO 12241 calculations and present a project-based payback report.
Let us calculate your plant's energy saving potential
Valve inventory and payback analysis within the thermal insulation audit scope.
